ST PC SX Pre-assembly Connector Components 2.0mm 3.0mm fibre optic st connector
The ST connector has a quick release bayonet style body and spring loaded ferrule. ST connectors are commonly used in networking applications. FibreFab manufactures a range of ST connectors suitable for various applications. .
FibreFab ST connectors are available in singlemode PC and multimode PC. The connectors come with standard boots suitable for 900µm, 2mm and 3mm cable diameters.
FibreFab manufactures a range of ST connectors suitable for various applications.
Most optical fiber connectors are spring-loaded, so the fiber faces are pressed together when the connectors are mated. The resulting glass-to-glass or plastic-to-plastic contact eliminates signal losses that would be caused by an air gap between the joined fibers.
Features:
► Complies with IEC 61754-2 and TIA 604-2
► Low insertion loss and back reflection
► Bayonet shaped housing for easy termination
► Nickel plated brass body
► Zirconia ceramic ferrule with high end PC finish
► RoHS, REACH SvHC compliant
Applications:
► Local area networks
► Data processing networks
► Distribution application
► Premises distribution
► Test and laboratory equipmen
Ease of use
| connector type | single mode / multimode |
| color | blue / Green |
| cable | 0.9/2.0/3.0 |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Parameter
| products name | OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution Patch Cord |
| mode type | single mode / multi mode |
| cable diameter | 0.9 /2.0 / 3.0 mm |
| insertion loss | ≤ 0.3dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥60 dB |
| wave length | 1310/1550 |
| ferrule material | Ceramic |
| operater temperature | -40~ +85℃ |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity )
|

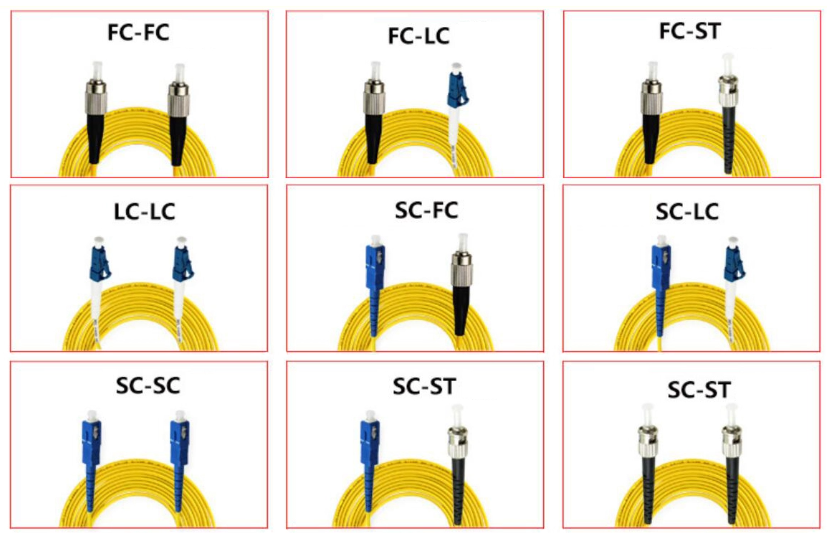

more connector for reference
| Connector type | LC / SC / FC / FC / E2000 / MPO /MTRJ /SMA |
| Mode type | single mode or multimode |
| Cable type | 0.9 / 2.0 / 3.0 mm |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
