Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks

Name: Professional Fiber Optic Splitter SC LC FC Connector For PON Networks
Brand: New Light
Price: 1 USD

Buy cheap Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks product

Brand Name : New Light

Model Number : LC / FC / SC / FC

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 10

Price : 1~30

Payment Terms : L/C, T/T, Western Union, MoneyGram, paypal

Supply Ability : 1000000

Delivery Time : 15 working days

Packaging Details : export packing

fiber type : 0.9 /2.0 / 3.0 mm

connector type : LC / FC / SC / ST

core type : 1x2/ 1x4 / 1x8/ 1x16 / 1x32 / 1x64

operating wave : 1260-1650

OEM / ODM : acceptable

fiber length : as your requirement

warranty : 5 years

delivery time : 2-10 working days after receive payment

payment : T/T , L/C , paypal , westen union , money gram

Contact Now

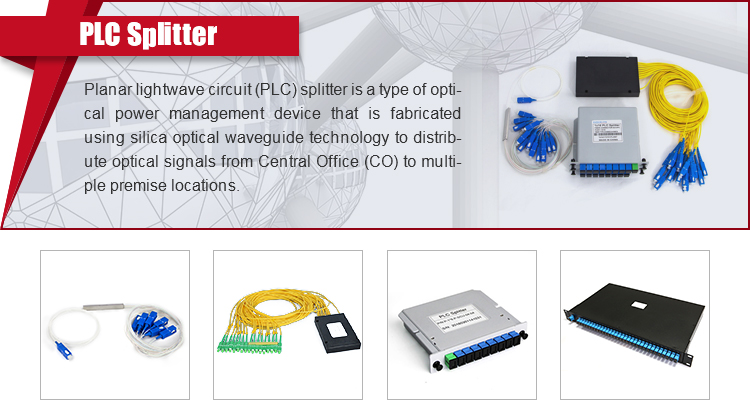

1×N PLC Splitter fiber optic splitter SC / LC / FC connector optical fiber PLC

Description

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6	100×40×6

Application:

1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

5) Local Areal Networks (LAN)

6) Fiber Communication Systems

Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks

Key features:

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength: 1260-1650nm

6) Wide Operating Temperature: -40°C - 85°C

7) High Reliability and Stability

Professional Fiber Optic Splitter SC / LC / FC Connector For PON Networks
