Underground Cable Ducting Single Mode Fiber Patch Cord GYFTY FRP 2 4 6 12 24 48 96 Core

Name: Underground Cable Ducting Single Mode Fiber Patch Cord GYFTY FRP 2 4 6 12 24 48 96 Core
Brand: YOFC / Corning
Price: 0.1 USD

Buy cheap Underground Cable Ducting Single Mode Fiber Patch Cord GYFTY FRP 2 4 6 12 24 48 96 Core product

Brand Name : YOFC / Corning

Model Number : GYFTY

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 1 roll

Price : 0.1~100

Payment Terms : L/C, T/T, Western Union, MoneyGram,paypal

Supply Ability : 1000000

Delivery Time : 7 working days

Packaging Details : export packing

Products name : GYFTY FRP 2 4 6 12 24 48 96 Core Single Mode Fiber Optic Cable For Underground cable ducting

mode type : single mode

cable type : G652D/G657A1/G657A2

cable material : PVC/LSZH

delivery time : 2-7 working days after payment done

Warranty : 1 year after delivery

payment term : T/T , PAYPAL,WESTERN UNION ,30%deposit , balance paid before delivery

length : can be customized

core : 12 core

Contact Now

GYFTY FRP 2 4 6 12 24 48 96 Core Single Mode Fiber Optic Cable For Underground cable ducting

The Single mode optical fiber cable herein after referred to as the ''Cable'' comply with the requirements of this specification and generally meet ITU-T Recommendation G.652.

G652 covers single-mode NDSF (non-dispersion shifted fiber) which is optimized for 1310nm wavelength.

G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0dB/km	≤3.0dB/km
(+20°C)	@1300nm			≤1.0 dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.4dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz/km	≥200MHz/km
(Class A)	@1300nm			≥1000MHz/km	≥600MHz/km
Numerical Aperture				0.2±0.015NA	0.275±0.015NA
Cable Cut-off		≤1260nm	≤1480nm
Cable Cut-off		≤1260nm	≤1480nm

Characteristics:

1.Excellent mechanical and temperature

performance guaranteed by the accurate excess Fiber length

2.Critical protection to fibers

3.The following measures are taken to ensure the

water blocking performance of the cable.

- Single steel wire used as the central strength member

- Special water-blocking filling compound in the loose tube.

- 100% cable core filling

Application: Duct/Aerial

Temperature Range:

Storing temperature:-40℃ to +70℃

Operating temperature:-40℃ to +70℃

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.

3.Standard Reel Length: 3000m/reel: other lengths available on request.

Technical Parameters:

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

operate temperature :

-20℃~+70℃

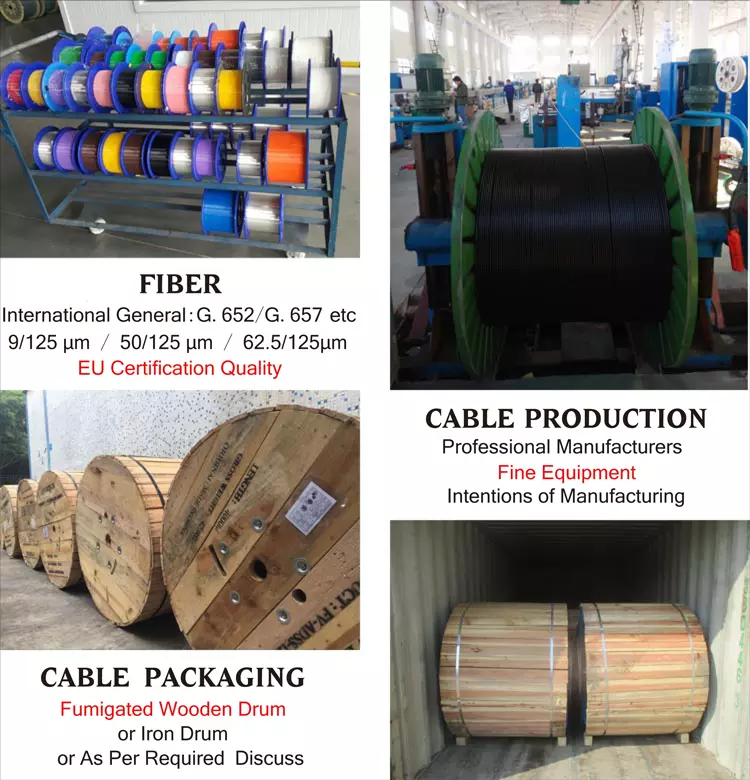

Company View
