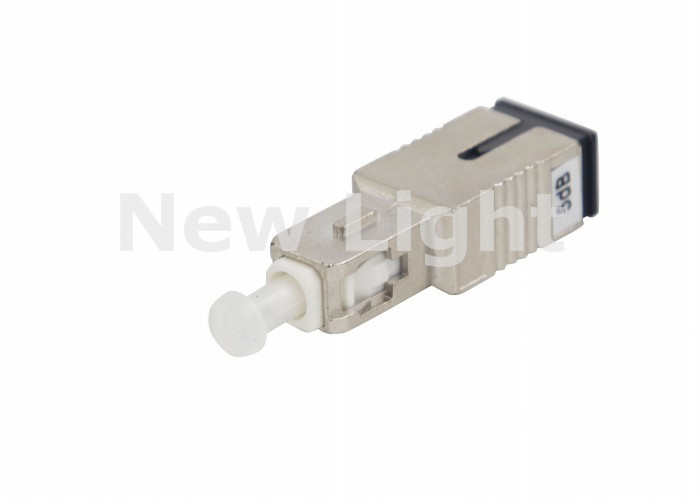

Easy Assembly SC Fiber Optic Attenuator Grey Color For Passive Optical Networks

Name: Easy Assembly SC Fiber Optic Attenuator Grey Color For Passive Optical Networks
Brand: New Light
Price: 1 USD

Buy cheap Easy Assembly SC Fiber Optic Attenuator Grey Color For Passive Optical Networks product

Brand Name : New Light

Certification : RoSH

Place of Origin : China

MOQ : 10

Price : 1~30

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 pcs per week

Delivery Time : 7 working days

Packaging Details : 1 pcs per pack

Name : SC Fiber Optical Attenuator

Color : White,black

Material : Metal outer

Connector : SC

Feature : Assembly

OEM : Available

Contact Now

SC Optical Fiber Attenuation , Overpowered Fiber Optic Systems

Quick Detail:

Model Number: SC attenuator

Ploish: PC, UPC

Color: Grey

Attenuator: 1dB, 2dB, 3dB, etc

Core: Simplex

Mating Durability: >1000 cycle

Return Loss: >50

1. Aplication

Passive optical networks
Overpowered fiber optic systems
Optical power receivers protection
Multiwavelength systems balancing
EDFA loop tests and measurements

2. Feature

Metal ion doped fiber
Attenuation levels ranging from 1 dB to 30 dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
Easy to connect/disconnect (RJ latch)
High mechanical resistance

3. Specification

Parameter	Value	Unit
Operating Wavelength	1310/1550 ± 10	nm
Tolerance for 1~5 dB Attenuation	± 0.5	dB
Tolerance for 6~30 dB Attenuation	± 10	%
Return Loss	> 50	dB
Operating Temperature	-40 to +75	C
Polarization Dependent Loss	< 0.1	dB
Mating Durability	>1000	cycle

Easy Assembly SC Fiber Optic Attenuator Grey Color For Passive Optical Networks

Product Tags:

single mode fiber attenuator

fixed optical attenuator

Easy Assembly SC Fiber Optic Attenuator Grey Color For Passive Optical Networks Images
