1x8 PLC Fiber Optic Splitter Single Mode Fiber Coupling With FC UPC Connector

Name: 1x8 PLC Fiber Optic Splitter Single Mode Fiber Coupling With FC UPC Connector
Brand: New Light
Price: 1 USD

Buy cheap 1x8 PLC Fiber Optic Splitter Single Mode Fiber Coupling With FC UPC Connector product

Brand Name : New Light

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 10

Price : 1~30

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000000

Packaging Details : export packing

Color : Black box,yellow cable

Connector type : FC

Polish : UPC

Splitter : 1x8

Mode : Single mode

OEM : single mode fiber splitter

Delivery Time : 15 working days

Contact Now

FC UPC 1x8 PLC optical splitter single mode with FC UPC connector for FTTH ST PLC 1x8 PLC optic splitter box

Introduction:

Single Mode PLC Steel Tube type Fiber Optic Splitter (PLC Splitter) can not work with different ratio rather than it provide a accurate splitting in high-density output (like 8,16,32,64 outputs) However, The most common type of fiber optic splitter splits the output evenly, which is coming out with the same output of light signals. As a result of its great function, Optical splitter is a very important part in passive opitc networks (PON).

Application:

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

Specification:

Parameters		1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)		1260-1650
Insertion Loss (dB)	Max(S/P)	7.4/7.2	10.7/10.5	13.7/13.5	16.9/16.5	21
Loss Uniformity (dB)	Max	0.6	0.8	1.2	1.7	2.5
Return Loss (dB)	Min(S/P)	50/55	50/55	50/55	50/55	50
PDL (dB)	Max	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	Min	55	55	55	55	55
Pigtail Length(m)		1.2(±0.1) or customer specified
Fiber Type		SMF -28e or customer specified
Wavelength Dependent Loss(dB)		1	1	1	1	1
Temperature Stability		0.6	0.6	0.8	1	1
(-40~85 ℃)(dB)
Operating Temperature( ℃)		-20~75
Storage Temperature( ℃)		-40~85
Packaging Size(L x W x H)(mm)		40x4x4	40x4x4	40x4x4	50x7x4	60x12x4

1x8 PLC Fiber Optic Splitter Single Mode Fiber Coupling With FC UPC Connector

Product Tags:

single mode fiber splitter

fiber optic cable splitter

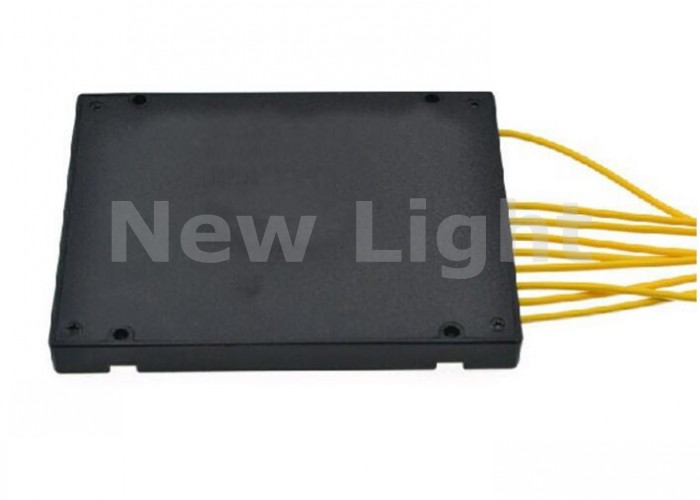

1x8 PLC Fiber Optic Splitter Single Mode Fiber Coupling With FC UPC Connector Images
